How Does A Kohler Toilet Work – Full Story
When you flush a Kohler toilet, the trip lever lifts the flush valve flapper, releasing water that creates a strong siphon to clear waste efficiently. The fill valve refills the tank and bowl precisely using an adjustable float.
Kohler’s AquaPiston design enhances water flow from all angles, while Revolution 360 Swirl technology maximizes bowl cleanliness and clog prevention. These systems guarantee reliable, powerful performance, so you’ll find out why they eliminate the need for plungers and resist clogs long term.

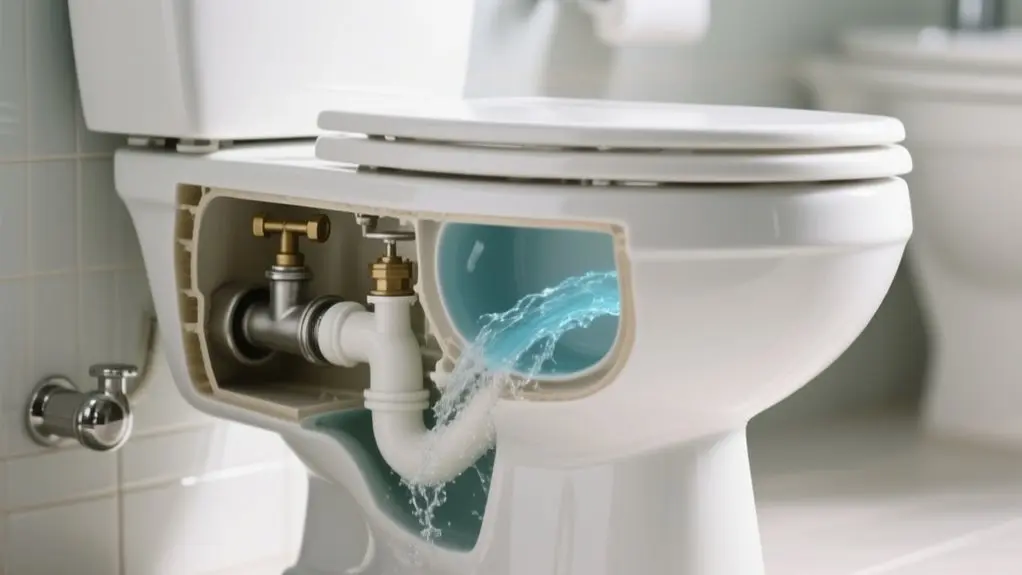

How Kohler Toilets Flush Using Gravity and Pressure
When you press the trip lever on a Kohler toilet, it triggers the flush valve flapper to open, allowing water from the tank to flow rapidly into the bowl. This flush valve controls the release of water, initiating a powerful surge through engineered passages.
The water flow fills the trapway quickly, creating a siphon effect that efficiently pulls waste from the bowl into the sanitary drainpipe. This siphon effect is essential, as it maintains strong flushing across varying waste volumes by utilizing gravity and pressure changes.
Rapid water flow triggers a siphon effect that efficiently clears waste through gravity and pressure changes.
The combined action guarantees efficient waste removal without excess water use.
Between flushes, pressure equalization keeps water in the bowl, preventing sewer gas from escaping, thereby maintaining sanitation and odor control.
Inside the Tank: How the Flush Cycle Works
When you activate the trip lever, it lifts the flapper. This lets water flow from the tank into the bowl, starting the flush.
Once the water empties, the flapper closes up, sealing the flush valve to stop any more water from flowing.
After that, the fill valve kicks in and refills both the tank and the bowl, getting everything ready for the next flush.
Flush Valve Operation
Although it may seem simple, the flush valve plays a critical role in the Kohler toilet’s operation by controlling water release from the tank to the bowl.
When you press the flush handle, the flush valve’s rubber flapper lifts, allowing water to flow rapidly through rim jets into the bowl.
This engineered water flow creates a surge that fills the trapway, triggering a siphon effect that efficiently evacuates waste into the sewer line.
Once the tank empties, the flapper reseals the flush valve, halting water flow.
At this point, the fill valve activates to restore water levels in both the tank and bowl, preparing the toilet for the next flush.
Maintaining proper flush valve operation is essential to avoid running toilets or incomplete flushes.
Tank Refill Process
As the tank water level drops after a flush, the float descends and signals the fill valve to start replenishing the tank.
When the float moves down, it activates the fill valve, allowing water to flow into the tank and through the refill tube to the toilet bowl.
This dual refill guarantees both components have the correct water volume for proper operation.
The fill valve continues supplying water until the float reaches its predetermined height, at which point the valve shuts off automatically, maintaining a consistent water level.
This precise control is essential for reliable flush cycles.
To keep this process efficient, you should regularly check and maintain the fill valve and float, preventing issues like incomplete flushing or a continuously running toilet.
How the Fill Valve and Float Refill Kohler Toilet Tanks Efficiently
You’ll notice that the fill valve kicks in as soon as the water level in the tank drops. It sends water through a refill tube to top things up quickly and efficiently.
Meanwhile, the float rises along with the water and tells the valve when to shut off once it hits the right level, keeping the tank perfectly filled.
Plus, you can adjust the float to control the water level, which helps make sure every flush works just right while saving water.
Float Mechanism Operation
When water drains from the tank during a flush, the float mechanism drops, triggering the fill valve to open and let fresh water in. This coordinated action guarantees efficient tank refills and consistent flushing performance.
As water flows in, the float mechanism rises until it reaches a preset level, signaling the fill valve to close and stop water flow.
Visualize the process:
- Float mechanism drops as tank empties
- Fill valve opens to allow water entry
- Float gradually rises with incoming water
- Fill valve shuts off when desired level is met
This precise interplay prevents overflow and readies the toilet for the next flush.
Maintaining the float mechanism is essential since any failure can cause continuous running or insufficient tank refills, impacting overall toilet function.
Fill Valve Activation
Although the flush initiates the process, the fill valve activates only once the float drops, signaling the tank’s decreasing water level. As the float descends, it triggers the fill valve to open, allowing water pressure from the supply line to push fresh water into the toilet tank.
This precise activation guarantees efficient refilling without wasting water. Simultaneously, a refill tube directs some water into the bowl to maintain its proper level during the tank refill.
The fill valve continues to admit water until the float rises to a predetermined height, at which point it shuts off to prevent overflow. This coordinated mechanism between the fill valve and float uses water pressure effectively, ensuring the toilet tank is promptly and efficiently replenished after each flush.

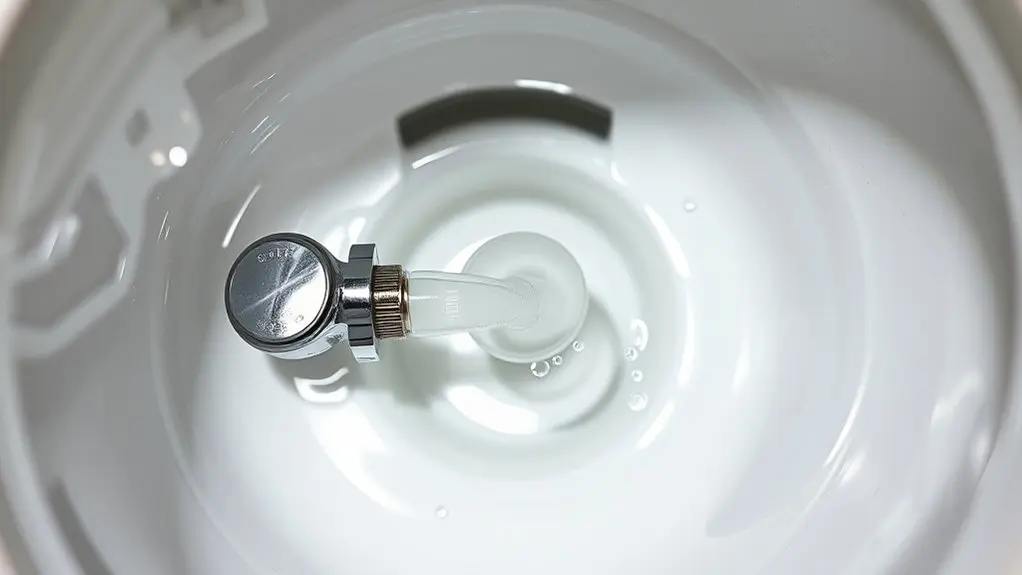

Water Level Regulation
Because the float controls the fill valve’s operation, it assures the tank refills to the exact water level needed for optimal flushing. When the tank empties, the float drops, triggering the fill valve to open and restore water to the predetermined level. This precise regulation assures an efficient flush every time.
The refill tube simultaneously adds water to the bowl, maintaining peak function.
Key components of water level regulation include:
- Float movement activating the fill valve
- Accurate water level preventing weak flushes
- Refill tube sustaining bowl water volume
- Durable Korky fill valves enhancing reliability

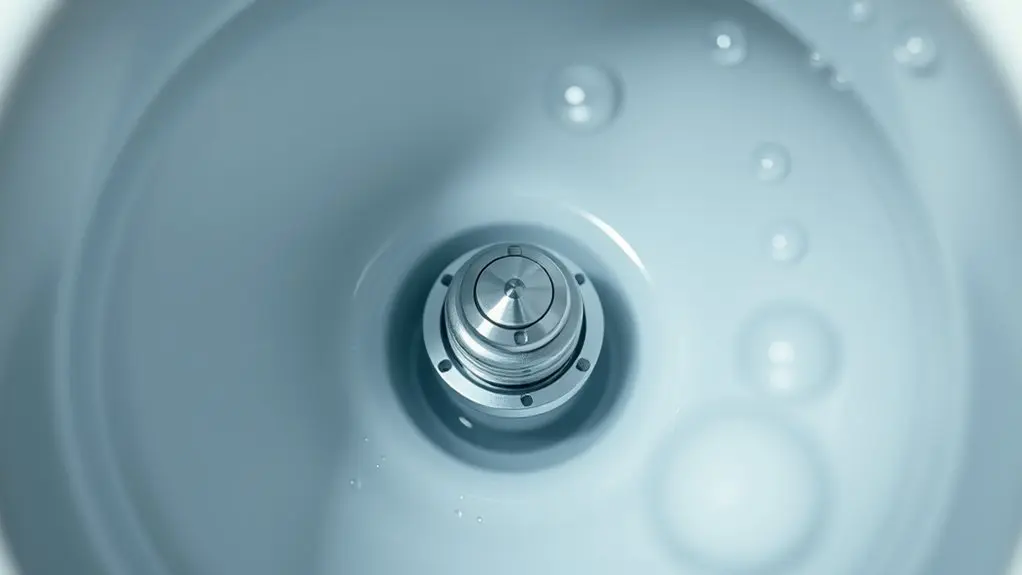

How the AquaPiston Flush Canister Powers Kohler Toilets
If you want a flush system that delivers consistent power and efficiency, the AquaPiston flush canister is the key. Its unique 360-degree water entry system guarantees an even flow of water into the bowl, generating a powerful flush that reduces clogs.
Unlike traditional flappers, the AquaPiston design propels water more effectively. This enhances bowl cleaning while the fill valve shuts precisely to maintain ideal water levels.
This mechanism eliminates waste buildup and incomplete flushing, promoting consistent performance and less maintenance.
| Feature | Benefit |
|---|---|
| 360-degree water entry | Even, powerful flush |
| AquaPiston flush design | Reduced clogs and waste buildup |
| Fill valve shuts | Maintains ideal water level |
How Kohler’s Revolution 360 Swirl Technology Keeps Bowls Cleaner
Kohler’s Revolution 360 Swirl Technology builds on the AquaPiston flush canister’s powerful water delivery by introducing a spiraling water flow that cleans the bowl more thoroughly. This system directs water in a continuous swirl around the toilet bowl, ensuring every surface is rinsed efficiently.
You’ll notice less streaking and residue buildup, thanks to water entering from all angles. This happens because of carefully designed fill valves working in sync with the flush canister.
With Revolution 360, you get:
- A consistent, 360-degree water swirl covering the entire toilet bowl
- Reduced chance of clogs by propelling waste through a spiraling motion
- Enhanced cleaning in high-traffic bathrooms, ideal for families
- Optimized water use without sacrificing flush power
This technology keeps your toilet bowl cleaner with every flush.
Why You Can Kick Your Plunger to the Curb With Kohler Flush Systems
Say goodbye to plungers with Kohler’s advanced flush systems that deliver powerful, efficient water flow designed to clear waste thoroughly on every flush.
The AquaPiston flush canister channels water evenly from all 360 degrees, creating a forceful, clog-free flush that outperforms traditional flapper mechanisms prone to blockages.
This even distribution maximizes waste removal, reducing residue buildup and the need for manual intervention.
Coupled with Revolution 360 swirl technology, Kohler flush systems guarantee extensive bowl rinsing, preventing clogs before they form.
By relying on these engineered flush systems, you experience fewer plumbing issues and maintain cleaner bowls consistently.
With Kohler, you can confidently eliminate plungers from your bathroom toolkit, knowing the AquaPiston system provides reliable, clog-free performance every time.
Why Kohler Toilets Pass Rigorous B.O.L.D. Tests
Anyone choosing a toilet expects consistent performance and reliability. That’s why Kohler subjects each model to the rigorous B.O.L.D. tests. These tests evaluate Kohler toilets on Bulk-Waste Removal, Overall Cleanliness, Light-Waste Removal, and Does Not Clog criteria, ensuring superior function.
By controlling the flow through advanced toilet parts, Kohler optimizes flushing efficiency and reduces clogs. The B.O.L.D. standards exceed industry benchmarks, reflecting Kohler’s commitment to quality.
You can visualize this process as:
- Powerful flushing that clears bulk waste in one pass
- Precise flow control maintaining thorough bowl cleanliness
- Efficient light-waste removal minimizing residue
- Innovative design that prevents clogging and eases maintenance
Passing B.O.L.D. means you’re choosing a toilet engineered for dependable, practical performance.
Frequently Asked Questions
Are Kohler Toilets Compatible With All Types of Plumbing Systems?
Kohler toilets are compatible with most standard residential plumbing systems, so you usually won’t have issues installing one in your home.
However, some commercial-grade models use high-pressure flush systems that might require plumbing modifications.
You should check your local plumbing codes and the specific Kohler model’s installation guidelines to verify compatibility.
If you’re working with gravity-fed or pressure-assisted setups, Kohler provides options designed to fit those systems efficiently.
How Do I Troubleshoot a Running Kohler Toilet?
Imagine a river that never stops flowing—that’s your running Kohler toilet. Start by lifting the tank lid and inspecting the flapper. If it’s warped or misaligned, replace it.
Next, check the fill valve and float arm height. Adjust them to stop overfilling.
Don’t forget the tank-to-bowl gasket; a worn one can cause leaks.
Regularly maintain and swap out faulty parts to keep your toilet running efficiently without wasting water.
What Maintenance Is Recommended for Kohler Toilet Parts?
You should regularly inspect and clean the toilet flapper to prevent leaks and guarantee proper water release.
Check the fill valve for debris or wear to maintain effective tank refilling.
Examine the tank-to-bowl gasket for leaks and replace worn parts like the tank lever or fill valve promptly.
Also, clean the overflow tube periodically to avoid overflows.
These steps keep your Kohler toilet functioning efficiently and extend its lifespan.
Can I Install a Kohler Toilet Myself or Hire a Professional?
You can install a Kohler toilet yourself if you have basic plumbing skills and tools. Imagine tightening bolts, aligning the wax seal perfectly, and connecting water lines without leaks.
However, if you’re unsure about plumbing details or face uneven flooring or tricky pipes, hiring a professional is wise. They guarantee a leak-free, code-compliant setup, saving you potential headaches.
Proper installation is key for reliable performance and long-term durability.
What Materials Are Used in Kohler Toilet Manufacturing?
You’ll find Kohler toilets mainly use vitreous china, a durable ceramic that’s non-porous and easy to clean.
They coat it with a high-gloss finish to prevent stains and grime buildup.
Inside, they use corrosion-resistant polymers and metals for parts like flush canisters.
Kohler also focuses on sustainability by choosing recyclable materials low in VOCs.
These choices guarantee your toilet stays reliable, performs well, and lasts long.
Conclusion
Now you know how Kohler toilets combine gravity, pressure, and innovative tech like the AquaPiston flush to deliver powerful, efficient performance. Impressively, their Revolution 360 Swirl technology reduces bowl residue by up to 30%, keeping your toilet cleaner with less effort.
With such precise engineering and rigorous B.O.L.D. testing, you can trust Kohler’s systems to flush effectively every time, making your bathroom experience both practical and reliable. Say goodbye to plungers for good.
